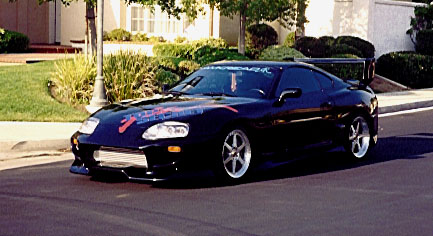

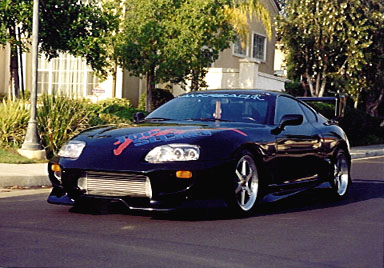

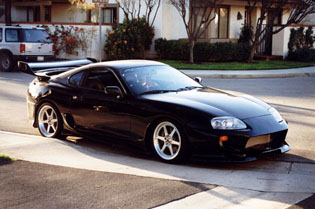

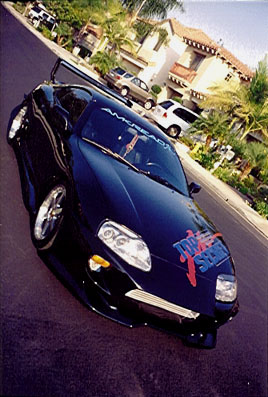

94' Toyota Supra Twin Turbo (JZA80-TT)

416 Rear Wheel Horsepower!

Some people said this car looks like a BAT-MOBILE, what do you think?

(Caution: This page is graphic intensive)

STOCK:

• Engine: 2JZ-GTE Twin-Turbocharged and Intercooled DOHC 24-valve In-line 6, 183 cu in (2997cc), iron block and aluminum head, Toyota engine-control system with port fuel injection.
• Transmission: 4speed Automatic ECT-i
• Power: 320 bhp @ 5600rpm
• Torque: 315 lb-ft @ 4000rpm
• 0-60mph: 5.2seconds
• 1/4 Mile: 13.7seconds
• Skidpad: 0.95g - 0.98g
• Braking: 70-0mph in 160 feet
• Weight: 3480 pounds

Modifications:

>Appearance:

• VEILSIDE Combat Model body kit


- Front bumper
- Rear valances
- Side skirts
- Double fin carbon fiber rear wing (Now replaced by a new Blitz wing)

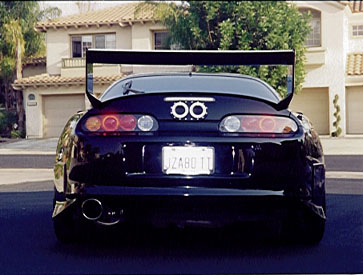

• Blitz 3-way adjustable rear wing

- Custom installation and paint job by Auto Network body shop.
- Seam-less fits using bundle.

• IMPUL IMSA Racing Fuel Intake

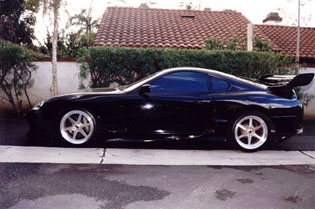

• Manaray Hyper-R rims w/ Bridgestone S-02 tires
  (2)18x8.5 with (2)235/40ZR-18
  (2)18x10 with (2)285/30ZR-18

These rims I special ordered from Japan. Took 3 months to arrive.
Note that it has thinner and longer spokes, and bigger face comparing to the MS-06 available in the state. It also has a flat lip instead of the steped lip that the regular MS-06 has.

Yes... I have VERY low-profile tires in the back!!

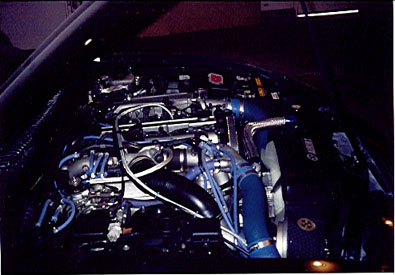

>Performance:

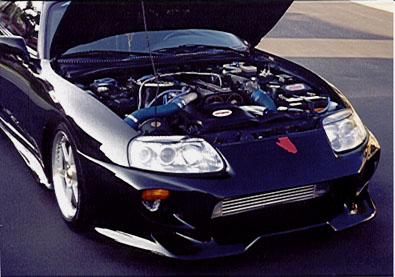

• TRUST/GReddy Front Mount Intercooler Kit
• Polished Intercooler end-tanks
• TRUST/GReddy BL SUS. Evolution Muffler with 130mm Tip
• Belanger's T304 SS 3" Down-Pipe
• TRUST/GRACER Airinx Air Filter Type-M with adapter
• Custom-made cold air induction
• TRUST/GReddy Type-S blow-off valve kit
• HKS EVC 3 with ATM
• HKS EVC Installation kit
• HKS Scramble Boost Controller Triger with custom mount
• HKS Fuel Cut Defenser
• TRUST/GReddy 60mm electrical Boost Gauge
• Cyberdyne Air/Fuel Ratio Gauge
• Replaced all vacum hoses with HKS Blue Silicone Vacum Hoses
• H&R Sport Springs

>Others:

• TRUST/GReddy turbo timer
• TRUST/GRACER shoulder pads

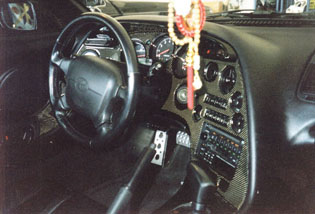

• Dash painted with glossy black interior paint
• Stillen Carbon Fiber Dash kit
• Raybrig White-Blue Hyper Halogen fog light bulbs
• Raybrig Blue Hyper bulb city lights
• Custom made lights for Front Mount Intercooler (So it shines at night!)
• Medium Tint all around w/ Titanium films

0-60mph: 4.32 seconds

1/4 mile: 12.68 seconds @ 113.7mph

Average of 5 runs using G-Tech Pro. Test done before tire upgrade to S02 and installation of Front mount intercooler. Running at 1.1BAR of maximum boost. With Turbo Magazine's article on the accuracy of G-Tech Pro, the actual 1/4mile result should be around 0.3 - 0.5 second quicker.

416 Rear Wheel Horsepower at 1.25BAR (~18.4psi) of boost tested on Dynojet Model 248C Dynamometer.
~520 Horsepower at the engine.

`

JZA80 = Supra's code name in Japan
TT = Twin Turbo

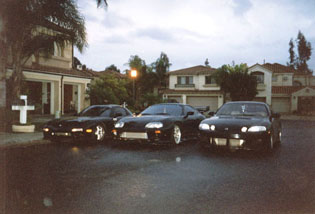

Starting from the left side:
My friend's moded Rx-7, My Supra, moded AB-Flug Lexus SC400.
